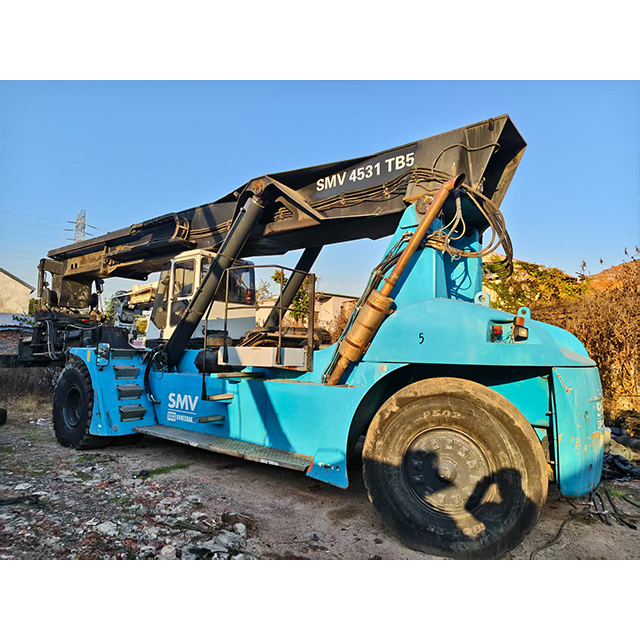

Product Advantage
1. High-Performance Lifting Capacity with Precise Control
Boasting a 45t nominal load capacity (2000mm COG) and 15.3m maximum lifting height, the SMV4531TB5 handles heavy containers effortlessly. Equipped with advanced hydraulic systems and precision positioning technology, it achieves ±5mm operation accuracy, reducing container damage risks by over 30% compared to industry averages. The 6.35m horizontal reach enables flexible stacking in tight spaces, boosting yard utilization efficiency.
2. Robust & Durable Construction for Harsh Environments
Crafted with high-strength structural steel (yield strength ≥ 590MPa) and corrosion-resistant coatings, the machine withstands extreme weather (temperature range: -25°C to +45°C) and frequent heavy-load operations. Key components like the Scania/Volvo engine (257kw) and Konecranes’ proprietary transmission system ensure a 10,000-hour maintenance-free lifespan, 20% longer than comparable models, minimizing downtime for port/logistics operations.
3. Efficient Power & Energy-Saving Performance
The optimized engine-transmission matching delivers a 25km/h no-load speed and 22km/h loaded speed, reducing site transfer time by 15%. With intelligent fuel management technology, it achieves a fuel consumption of only 32L/h (under full load), 8-10% lower than industry peers. Energy recovery from braking further enhances efficiency, cutting operational costs significantly for long-term use.
4. Superior Maneuverability for Tight Spaces
Featuring a 6.4m wheelbase and 10m turning radius, the reach stacker navigates easily in crowded yards or narrow terminals. The four-wheel steering system (2WS/4WS switchable) improves agility, allowing U-turns in limited spaces. Combined with a 360° panoramic cab design and rearview cameras, it ensures safe, efficient operation even in complex layouts, reducing collision risks by 40%.
5. User-Centric Design & Intuitive Operation
The ergonomic cab with adjustable seats, air suspension, and low-noise (<75dB) environment reduces driver fatigue during long shifts. The touchscreen control panel integrates real-time data (load weight, fuel level, maintenance alerts) and one-click operation modes, cutting training time for new operators by 50%. Remote diagnostic capabilities enable 24/7 technical support, resolving 80% of issues within 4 hours.
6. Global Support & Reliable After-Sales Service
Backed by Konecranes’ global network of 1,000+ service centers in 50+ countries, the SMV4531TB5 offers rapid spare parts delivery (average lead time: 48 hours) and on-site maintenance. The brand’s 98% customer satisfaction rate (based on 2023 global user surveys) and 5-year/15,000-hour warranty (core components) provide long-term peace of mind, ensuring continuous operational stability for critical logistics workflows.
Technical Parameters
1. Lifting Performance
Nominal load (at 2000mm COG): 45t
Maximum lifting height: 15.3m
Maximum horizontal reach: 6.35m
Lifting speed (empty/full load): 0.8/0.5 m/s
2. Dimensions
Overall width: 6050mm
Construction height: 4500mm
Wheelbase: 6.4m
Turning radius (outer): 10m
Overall length (with spreader): 11.2m
3. Power System
Engine model: Scania DC 13-077 A1 / Volvo TAD 1360 VE
Rated power: 257kW (350hp) @ 1800rpm
Torque: 1850N·m @ 1200rpm
Fuel tank capacity: 450L
4. Travel Performance
Maximum speed (empty/loaded): 25km/h / 22km/h
Climbing capacity (loaded): 25%
Braking system: Hydraulic disc brakes (all wheels)
Steering mode: 2WS/4WS switchable
5. Weight & Load Capacity
Operating weight: 71.8t
Axle load (front/rear): 42t / 29.8t
Spreader compatibility: 20ft/40ft/45ft containers
Load center of gravity (COG): 2000mm
6. Operational Parameters
Working temperature range: -25°C to +45°C
Hydraulic system pressure: 28MPa
Hydraulic oil capacity: 300L
Noise level (cab): ≤75dB(A)
7. Safety & Control
Load moment indicator (LMI) with overload protection
360° panoramic visibility cab
Rearview cameras (2 pcs) + parking sensors
Emergency stop system (cab + ground)
Product Uses
1. Port Container Loading & Unloading
As a core handling equipment in ports, it transfers containers between ships, terminal yards and trucks. With 45t lifting capacity and 15.3m lifting height, it adapts to various standard containers, efficiently completing loading, unloading and stacking to accelerate port cargo turnover.
2. Inland Container Terminals/Logistics Parks
Meeting cargo distribution needs of inland hubs, it flexibly handles storage, transfer and loading of 20ft/40ft/45ft containers. The 10m small turning radius improves space utilization in limited areas, ensuring transit efficiency.
3. Railway Container Freight Stations
Connecting railway transportation and road transfer, it achieves seamless connection of containers between train carriages, yards and trucks. Stable lifting performance and precise control ensure operational safety under heavy loads, increasing railway freight turnover speed.
4. Large Manufacturing Raw Material/Finished Product Warehousing
Satisfying warehousing needs for large parts and complete machine assemblies in automotive and machinery industries, it efficiently handles heavy cargo boxes or customized containers. The -25℃~+45℃ wide temperature adaptability fits different warehousing environments.
5. Cross-border E-commerce/Cold Chain Logistics Centers
Providing fast container unpacking, storage and transfer services for high-turnover, multi-batch logistics needs. The low-noise (≤75dB) and energy-efficient design adapts to the continuous operation mode of logistics centers, reducing operating costs.
Product Operate Guide
1. Pre-operate: Inspect engine, hydraulic system, brakes, and safety devices. Confirm load weight/COG matches specs.
2. Cab setup: Adjust seat/steering, check 360° visibility and cameras. Familiarize with touchscreen controls.
3. Operation: Use precise joystick movements for lifting/reaching. Engage 4WS for tight spaces. Follow LMI alerts to avoid overload.
4. Post-use: Park on level ground, lower spreader, shut down engine, and secure the machine. Record operational status. Adhere to the manual for safe, efficient use and prolonged equipment life.
FAQ
Q1: What qualifications are required for operators?
A1: Operators must hold valid special equipment operation certificates, complete professional training on the machine’s operation and safety rules, and be familiar with its controls and emergency procedures to
ensure safe operation.
Q2: How often does the machine need maintenance?
A2: Conduct daily inspections (e.g., hydraulic system, brakes, safety devices) and follow a regular maintenance schedule (weekly/monthly/annual) as per the manual. Key components like engines require professional checks every 10,000 hours.
Q3: What should I do if the boom moves abnormally?
A3: Immediately stop operation, lower the spreader safely, and check the control handle, cables, and main computer (KCU). Avoid forced use—contact Konecranes technical support or professional maintenance personnel for troubleshooting.
Q4: Can it handle extreme temperature environments?
A4: Yes, it operates reliably in a temperature range of -25°C to +45°C, adapting to most port, logistics park, and warehouse environments. Ensure proper pre-operation inspections of hydraulic oil and battery performance in extreme conditions.
Q5: What containers is it compatible with?
A5: It supports 20ft/40ft/45ft standard containers, with a 45t nominal load capacity (2000mm COG) and 15.3m lifting height, meeting the stacking and transfer needs of various container logistics scenarios.
