Product Advantage
1. Exceptional Fuel Efficiency and Sustainability

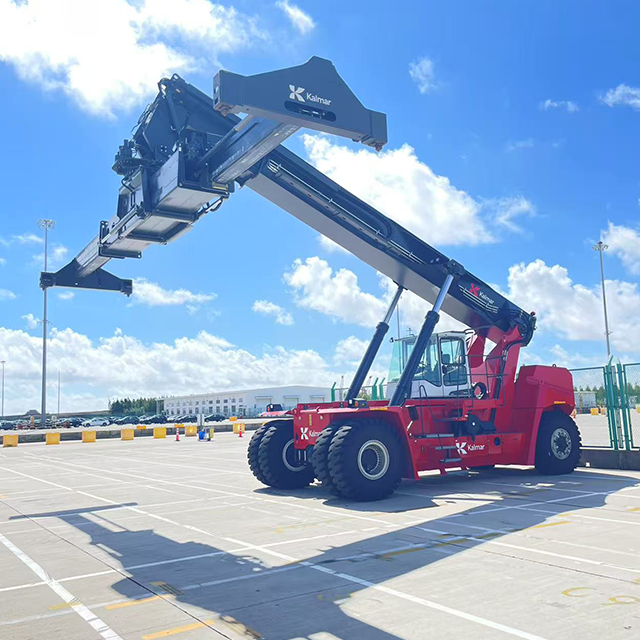

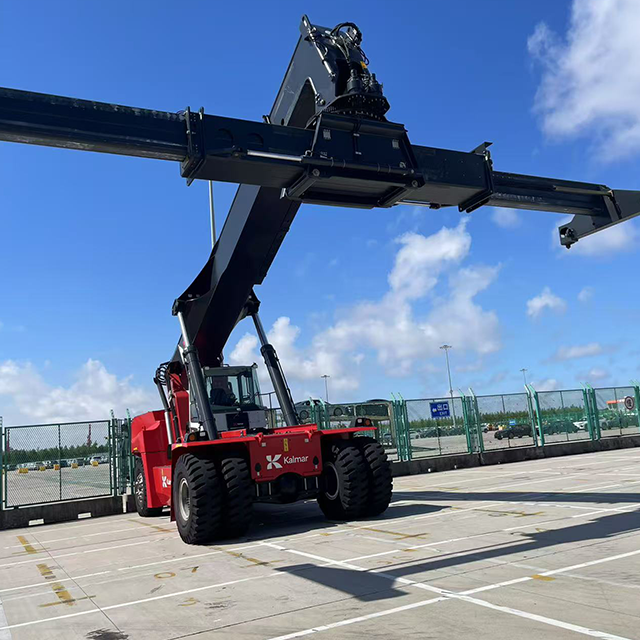

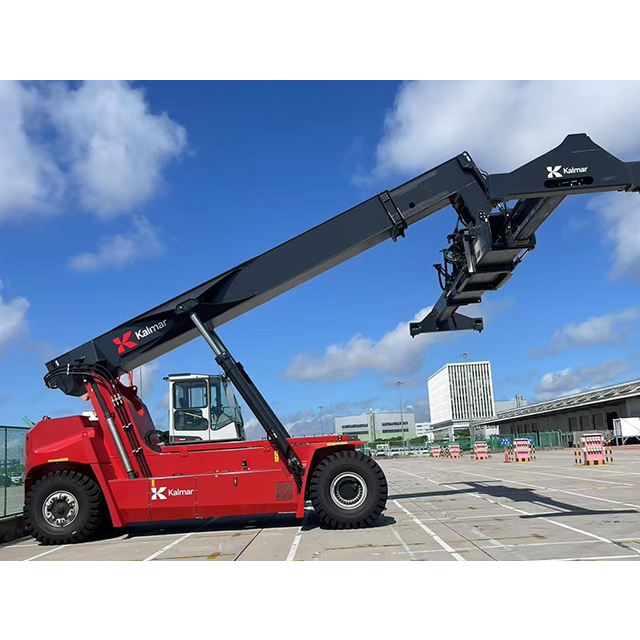

The Kalmar DRU reach stacker integrates a load-sensing hydraulic system, 5-speed Dana TE-30500 transmission, and high-efficiency Volvo/Cummins engines. It reduces fuel consumption by 10-20% compared to previous models and up to 25% versus recent competitors, with a fuel-saving guarantee for financial predictability. Compatible with HVO fuel (EN 15940 standard), it cuts CO₂ emissions by up to 90% while maintaining full productivity.
2. Robust Lifting Capacity and Operational Versatility
Boasting a 45-ton standard lifting capacity and 32-ton capacity in tilt mode, it supports stacking up to 6 layers high and 4 rows deep for flexible container handling. With a maximum lifting height of 15.1m and horizontal reach of 4.6m, it efficiently operates in ports, logistics centers, and industrial yards. Four models with lifting capacities ranging from 45 to 57 tons cater to diverse cargo requirements, including containerized bulk materials via tiltable spreaders.
3. Industry-Leading Safety Standards
Fully compliant with EN 1175:2020 safety standards, the equipment ensures maximum workplace protection. Its ergonomic cabin features optimal visibility and intuitive controls, reducing driver fatigue during long shifts. The tiltable spreader (up to 55 degrees) and independent hydraulic/braking systems enhance operational safety, while the machine’s stable design (69.5t weight, 6.25m wheelbase) minimizes accident risks in dynamic environments.
4. Proven Reliability Backed by Extensive Expertise
Built on a trusted platform with over 11,000 units manufactured, the DRU series leverages Kalmar’s decades of reach stacker engineering experience. It adopts durable components like Volvo’s 235kW TAD 1180-VE engine and Dana transmissions, tested to withstand harsh working conditions. Global service support across 140+ countries ensures minimal downtime, while low energy loss and efficient maintenance reduce long-term operational costs.
5. Flexible Emission Compliance Options
The reach stacker offers multiple emission stage choices, including EU 3/Tier 3, EU 4/Tier 4F, and EU 5, meeting regional environmental regulations worldwide. This adaptability allows businesses to align with local carbon standards without compromising performance. The combination of eco-friendly engines and efficient powertrain ensures compliance while delivering consistent 26 km/h travel speed (unloaded) for high throughput.
Technical Parameters
In terms of load-bearing performance, the lifting capacity at the standard center of gravity (1965 mm) reaches 45 tons, and the load capacity in tilting mode is 32 tons. The equipment supports a maximum stacking height of 6 layers and 4 rows of deep operation, with a maximum lifting height of 15.1 meters and a maximum horizontal working radius of 4.6 meters, which can flexibly meet the container handling needs of different scenarios.
The power system is equipped with a Volvo TAD1180-VE engine with an output power of 235 kW, and optional 265 kW Volvo engine or 246 kW Cummins engine is also available. It is matched with a Dana TE-30500 5-speed forward and 3-speed reverse automatic power shift transmission. The engine displacement is 10.84 liters, the maximum torque is 1581 N·m at 1450 rpm, ensuring stable and efficient power output.
For dimensions and weight, the total machine weight is 69.5 tons, the total width is 4150 mm, the body height is 3650 mm, the wheelbase is 6250 mm, and the turning radius is 9.4 meters, balancing operational stability and site adaptability.
In terms of operating performance, the no-load travel speed can reach 26 km/h, and the loaded travel speed is 18 km/h (up to 22 km/h under certain working conditions), featuring excellent operational efficiency.
Configuration specifications include standard 18×25 (PR 40/E4) tires and wet disc brakes. Regarding emission compliance, multiple versions are available, including EU 3/Tier 3, EU 4/Tier 4F, EU 5, and Korea Stage 5. Some versions are compatible with HVO fuel meeting EN 15940 standard, and the entire machine complies with EN 1175:2020 safety standards. Certain models have passed the in-use conformity test for China's Non-road Stage IV emission standard
Product Uses
1. Port and Terminal Operations
Ideal for loading/unloading containers from ships and barges, it handles 45-ton standard loads and supports 6-layer stacking/4-row deep access. Its 26 km/h no-load speed and stable design boost throughput, making it a core tool for efficient container transshipment and yard management.
2. Intermodal Logistics Hubs
Connects sea, rail, and road transport by transferring containers between trucks, trains, and storage yards. Compatible with 20'-40' containers and HVO fuel, it meets environmental standards while ensuring flexible, rapid cargo turnover for busy logistics centers.
3. Industrial Heavy-Duty Handling
Serves steel, energy, and mining sectors with specialized attachments (hooks, magnets). It lifts steel coils, wind turbine components, and mining parts safely, with a 32-ton tilt-mode capacity and EN 1175:2020 compliance for harsh industrial environments.
4. Bulk and Agricultural Facilities
Equipped with 55-degree tilting spreaders, it unloads bulk goods (grain, ore, biomass) from containers efficiently. Features like container shakers prevent material sticking, suiting agricultural storage, recycling plants, and chemical fluid handling scenarios.
5. Empty Container Yards
Optimizes storage of empty/semi-laden containers with precise stacking up to 6 layers. Its compact turning radius (9.4m) and maneuverability excel in confined spaces, supporting container maintenance, repair, and organized yard inventory management.
Product Operate Guide
1. Pre-Operation Checks
First, verify fluid levels (fuel, hydraulic oil), tire pressure, and spreader twist locks. Test safety devices like load limiters and emergency stops. Assess the work area for flatness, obstacles, and wind speeds (avoid ≥6-level winds) to ensure safe operation.
2. Startup & Basic Operation
Fasten your seatbelt after boarding. Idle the engine for 3 minutes to warm up. Align the spreader with the container, lock it until the green indicator lights up. Accelerate, brake, and turn smoothly; keep the container 3 meters off the ground during transport.
3. Operational Do’s & Don’ts
Never overload or lift people. Retract the boom when moving; avoid sharp turns with loads. Maintain a ≥30m safe distance from other machines. Stop working immediately if you hear abnormal noises or detect leaks.
4. Post-Operation Steps
Park on level ground, lower the spreader, and turn off the engine. Clean the cab and spreader, check for damage, and record operational status in the logbook to prolong machine life.
FAQ
1. What fuel types is the Kalmar DRU reach stacker compatible with?
It works with standard diesel and HVO fuel meeting EN 15940. HVO cuts CO₂ emissions by up to 90% instantly, and the automatic engine stop system reduces idling-related fuel waste by 10%.
2. How often does the equipment require maintenance?
Service intervals are extended for cost efficiency. Routine checks (fluid levels, brakes) are recommended every 3–6 months, with major servicing aligned to usage. Safe, accessible service points minimize downtime.
3. Can I monitor the machine’s performance and maintenance needs?
Yes, via Kalmar Insight. It provides real-time operational data, analyzes performance, and manages maintenance tasks. This tool optimizes fleet efficiency and helps predict potential issues early.
4. Is the reach stacker compliant with international safety standards?
It fully meets EN 1175:2020 safety standards. Optional SOLAS-compliant load measurement systems record load weights, ensuring compliance for port and terminal operations worldwide.
