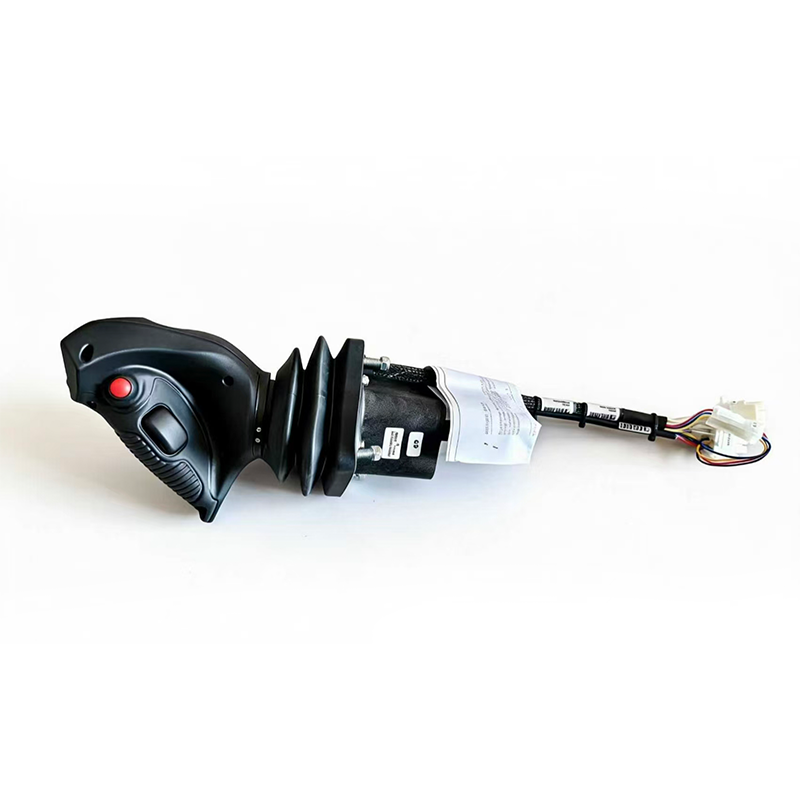

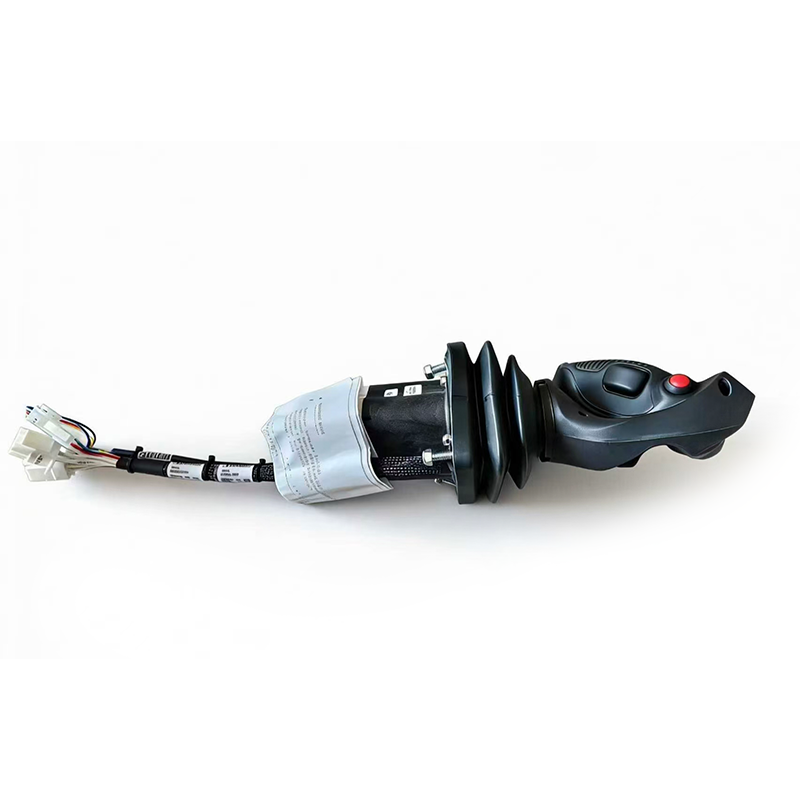

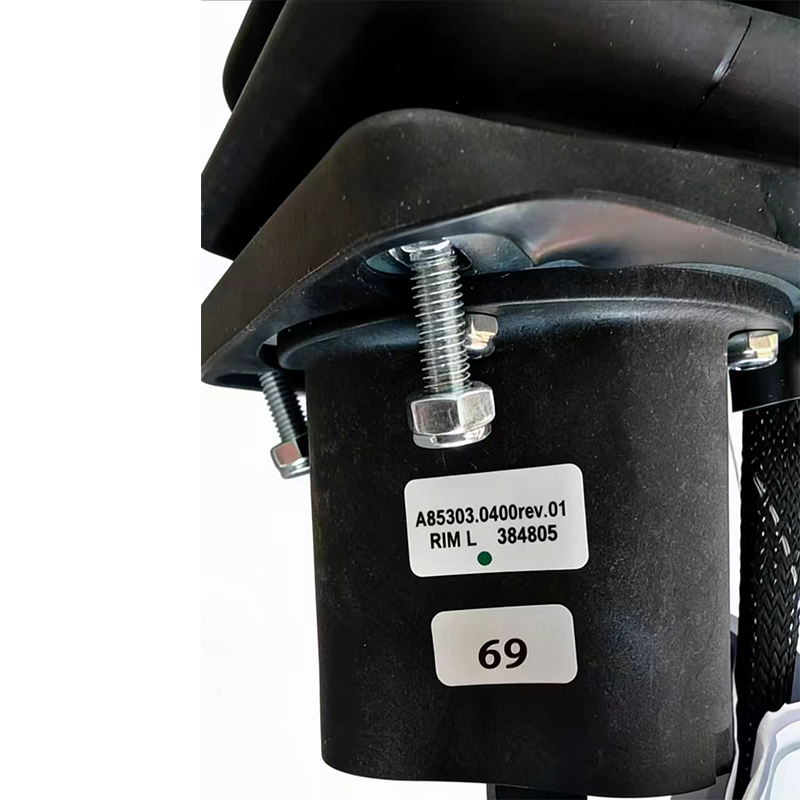

Kalmar A85303.0400 Joystick: Advantages & Features
1. Precision Hall - Effect Sensing
Leveraging advanced Hall - effect technology, this joystick delivers ultra - precise control with a repeatability error of less than 0.5%. It accurately translates joystick movements into proportional electrical signals, ensuring smooth and responsive operation in material - handling tasks like crane lifting and forklift maneuvering.Keywords: “Hall - effect joystick precision”, “Kalmar joystick repeatability”, “precise material - handling control”
2. Multi - Axis Flexibility
Supporting 1 - 3 axis operation, it adapts to diverse machinery control needs. Whether it’s a port crane requiring complex 3 - axis movement for container stacking or a forklift needing simple 1 - axis tilt control, it functions flawlessly. The axis configuration can be customized via software, enhancing its versatility.Keywords: “multi - axis joystick flexibility”, “customizable Kalmar joystick axis”, “diverse machinery control”
3. Durable Ergonomic Design
Engineered with an ergonomic grip, it reduces operator fatigue during long - hour use. The housing uses high - strength industrial plastic, withstanding over 100,000 cycles of operation. Its IP65 - rated sealing protects against dust and water ingress, ensuring reliability in harsh port and warehouse environments.Keywords: “ergonomic joystick design”, “durable Kalmar joystick housing”, “IP65 - rated joystick protection”
4. High - Speed Signal Output
Capable of outputting analog or PWM signals at a rate of up to 1000Hz, it ensures real - time communication with the machine’s control system. This high - speed response minimizes operation lag, critical for time - sensitive tasks such as high - throughput container loading/unloading.Keywords: “high - speed joystick signal output”, “real - time machinery control”, “Kalmar joystick low - lag”
5. Easy Integration & Calibration
Designed for seamless integration, it has a standardized interface that matches common industrial control systems. Calibration can be done quickly via a user - friendly software tool, reducing setup time by up to 30% compared to traditional joysticks, streamlining maintenance and replacement processes.Keywords: “easy joystick integration”, “Kalmar joystick quick calibration”, “streamlined joystick maintenance”
Technical Parameters of Kalmar A85303.0400 Joystick
The Kalmar A85303.0400 joystick adopts non - contact Hall - effect technology. It supports 1/2/3 - axis operation, with an installation depth of less than 20mm. For lifespan, it can withstand 10,000,000 cycles (5,000,000 cycles for 3 - axis). The sealing rating reaches IP65 (depending on configuration). It provides analog or custom PWM output signals. The operating temperature range is -20℃ ~ +65℃, and it can resist vibration of 10 - 55Hz (98 m/s²) and impact of 294 m/s².
Application Scenarios of Kalmar A85303.0400 Joystick
1. Port Crane Operations
Used to precisely control container - handling cranes. Enables smooth 1 - 3 - axis movements for lifting, rotating, and telescoping, ensuring accurate container stacking/unstacking. Ideal for high - throughput port logistics, reducing operation errors.
2. Forklift Maneuvering
In forklifts, it controls lifting, tilting, and forward/backward motions. The ergonomic design reduces operator fatigue during long - hour warehouse cargo handling, while precise Hall - effect sensing ensures stable load positioning.
3. Industrial Machinery Control
Suitable for machines like material conveyors in factories. Allows operators to adjust speed, direction, and sorting actions via multi - axis control. Its IP65 protection resists dust and water in harsh industrial environments.
4. Agricultural Equipment
Applied in farm machinery such as crop harvesters. Facilitates controlling cutting, lifting, and conveying systems. The durable structure withstands vibration and dust, ensuring reliable operation in rural fields.
5. Construction Machinery
Used in construction cranes and excavators. Enables fine - tuned control of boom lifting, arm swinging, and bucket motions. High - speed signal output ensures real - time response for safe and efficient building site operations.
FAQs about Kalmar A85303.0400 Joystick
Q: Why is the joystick unresponsive?
A: Check power supply (ensure 24V DC is stable) and cable connections. If using analog signals, verify voltage output (0 - 5V/0 - 10V). A faulty Hall sensor or damaged wiring may also cause this—contact support.
Q: Can it work in cold environments?
A: Yes. It operates in -20℃ ~ +65℃. For extreme cold (below -10℃), pre - warm the equipment briefly. Avoid ice/condensation on the joystick to prevent short - circuits.
Q: How to calibrate the joystick?
A: Use Kalmar’s calibration software. Connect via USB, run the tool, follow on - screen prompts to set neutral positions and axis limits. Save settings—reboot the system to apply changes.
Q: What if the joystick drifts (unexpected signals)?
A: Drift may stem from electromagnetic interference. Move nearby high - power devices (e.g., welders) away. Recalibrate the joystick. If the issue persists, replace the Hall sensor module.
Q: Is water damage covered under warranty?
A: The IP65 rating resists dust/water jets. However, submersion or improper cleaning (high - pressure water) voids the warranty. For water - related faults, contact Kalmar for repair assessment.
