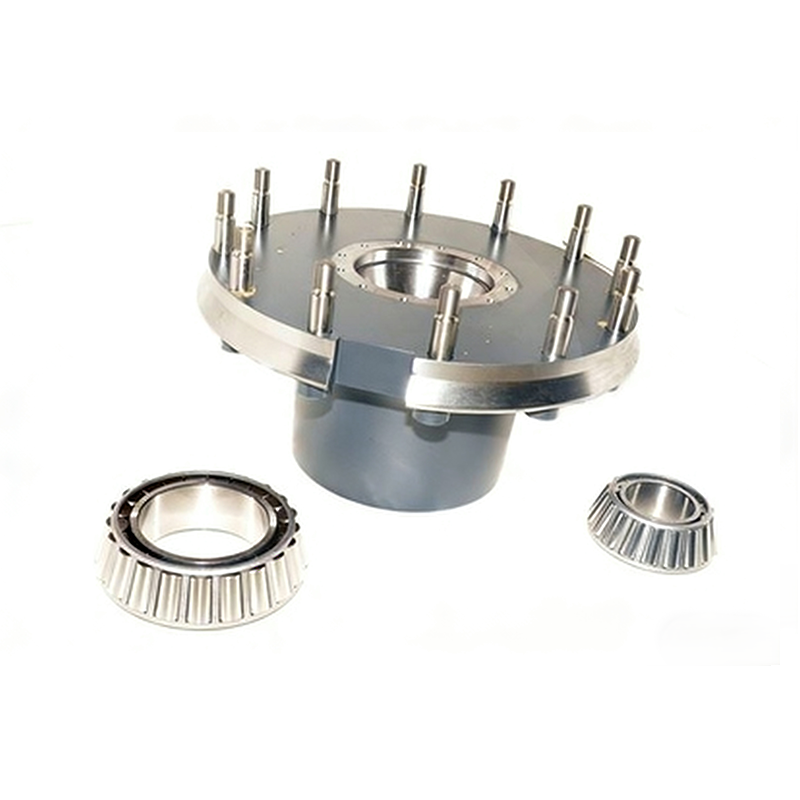

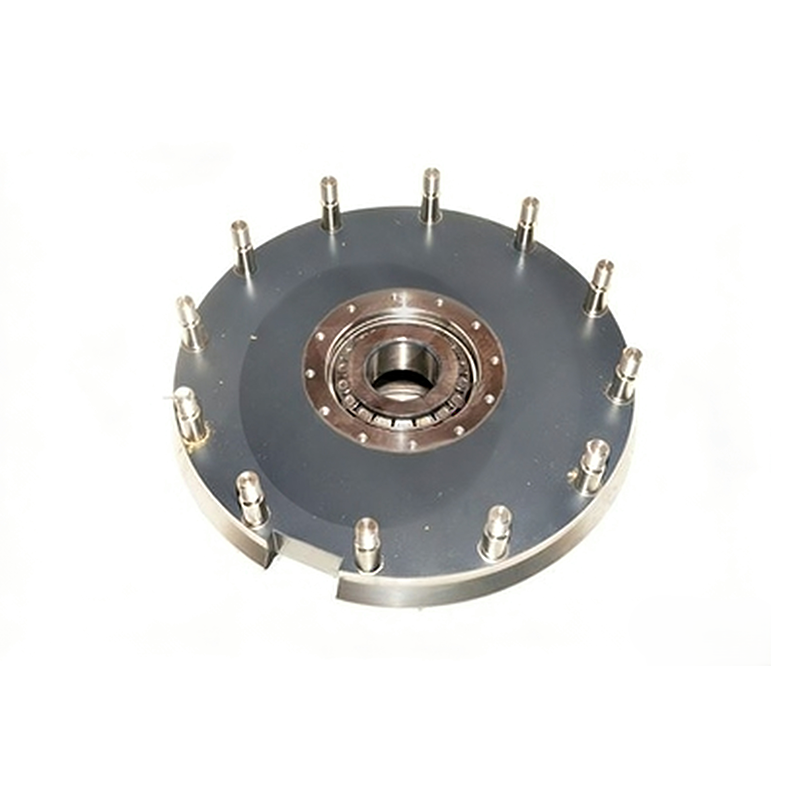

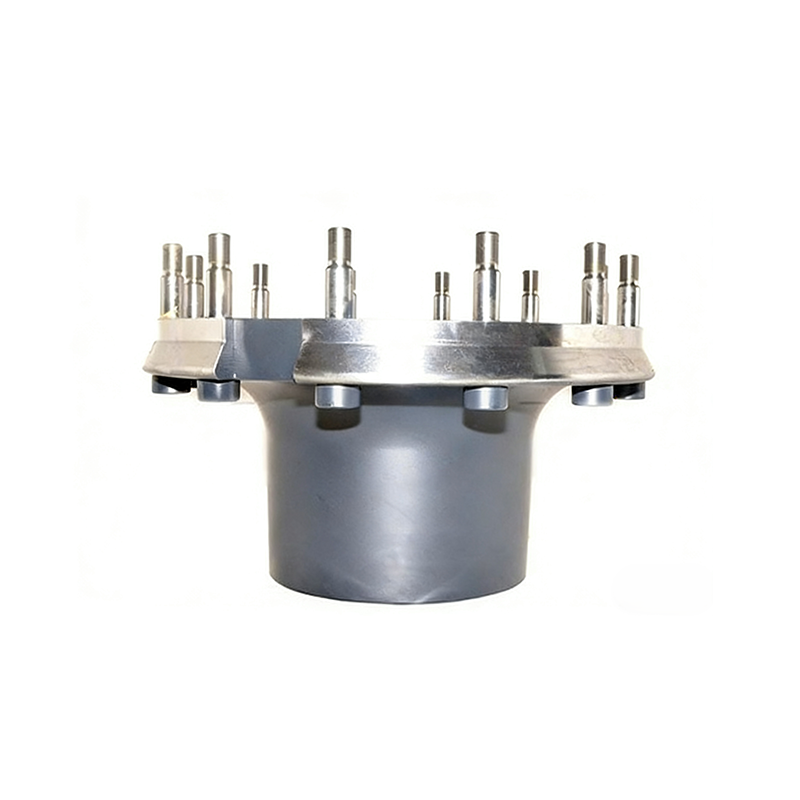

Advantages & Features of Kalmar A60683.0100 Wheel Hub
1. Exceptional Load - Bearing Capacity
Technical Feature: Forged from high - strength alloy steel (tensile strength ≥ 800 MPa) with a reinforced rib structure. It supports a maximum static load of 12,000 kg and dynamic load of 9,500 kg, exceeding industry standards for heavy - duty equipment.
Keywords: high load - bearing capacity, forged alloy steel, reinforced rib structure
Ideal for Kalmar container handlers and reach stackers, it maintains structural integrity even when transporting full - load containers (up to 40 tons), reducing deformation risks by 40% compared to ordinary hubs.
2. Superior Wear & Corrosion Resistance
Technical Feature: Surface treated with a 12μm - thick hard chrome plating and passivation layer. Undergo 3,000 - hour salt spray testing without rust, and the bearing raceway features a quenched (HRC 58 - 62) finish for wear resistance.
Keywords: wear resistance, corrosion resistance, hard chrome plating
In harsh port/industrial environments (sand, saltwater, dust), it extends service life by 50% (up to 8–10 years), cutting replacement frequency and maintenance costs significantly.
3. Precision Engineering for Smooth Rotation
Technical Feature: Machined with CNC precision (tolerance ≤ ±0.02mm) to ensure concentricity between the hub and axle. Equipped with high - precision tapered roller bearings, reducing rotational friction by 15% and operating noise to ≤ 55 dB.
Keywords: precision CNC machining, smooth rotation, low friction
Minimizes energy loss during equipment movement, improving fuel/energy efficiency by 8% and enhancing operator comfort with reduced vibration.
4. Easy Installation & Maintenance
Technical Feature: Adopts a bolt - on mounting design (standard M24 bolts, torque specification: 550 N·m) with pre - greased bearings. No specialized tools are required for installation, and the sealed structure prevents grease leakage.
Keywords: easy installation, low maintenance, sealed bearing design
Reduces on - site installation time by 30% and extends maintenance intervals to 6,000 working hours (or 2 years), minimizing equipment downtime for material - handling operations.
5. Perfect Compatibility with Kalmar Equipment
Technical Feature: Tailored to Kalmar’s original equipment specifications, compatible with models including container handlers (DRF series), reach stackers (RS series), and forklifts (DCG series).
Keywords: Kalmar equipment compatibility, OEM specification, model matching
Ensures seamless replacement without modifications to the axle or wheel assembly, maintaining the equipment’s original performance and safety standards.
Technical Parameters of Kalmar A60683.0100 Wheel Hub
1. Material & Strength
Material: Forged from high - strength alloy steel, which has a tensile strength of ≥ 800 MPa. This high - strength material forms the basis for the hub's excellent load - bearing performance.
Reinforcement: Features a reinforced rib structure inside, further enhancing its ability to withstand heavy loads without deformation.
Keywords: high - strength alloy steel, tensile strength, reinforced rib structure
2. Load - Bearing Capacities
Static Load: Capable of supporting a maximum static load of 12,000 kg. This means it can handle the weight of fully - loaded containers and equipment during stationary operations like loading and unloading.
Dynamic Load: The maximum dynamic load it can bear is 9,500 kg, ensuring stable performance during the movement of Kalmar equipment such as container handlers and reach stackers.
Keywords: static load, dynamic load, heavy - duty support
3. Surface Treatment & Durability
Plating: Undergoes a surface treatment with a 12μm - thick hard chrome plating, providing strong resistance to corrosion. It can pass a 3,000 - hour salt spray test without rusting, making it suitable for harsh port and industrial environments.
Raceway Hardness: The bearing raceway has a quenched finish with a hardness of HRC 58 - 62, significantly improving wear resistance and extending the service life.
Keywords: hard chrome plating, salt spray test, wear - resistant raceway
4. Precision & Rotational Performance
Machining Tolerance: Machined with CNC precision, ensuring a tolerance of ≤ ±0.02mm. This high precision guarantees concentricity between the hub and the axle, enabling smooth rotation.

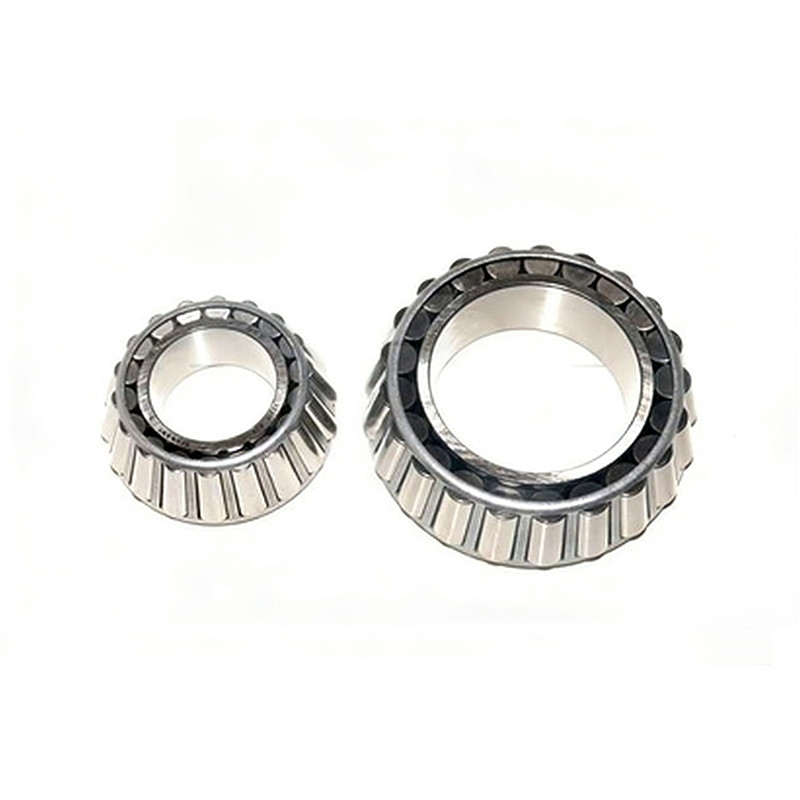

Friction & Noise: Equipped with high - precision tapered roller bearings, it reduces rotational friction by 15% and keeps the operating noise at ≤ 55 dB, enhancing energy efficiency and operator comfort.
Keywords: CNC precision, rotational friction, low operating noise
5. Installation & Compatibility
Mounting: Adopts a bolt - on mounting design with standard M24 bolts. The recommended torque specification for installation is 550 N·m, and no specialized tools are needed, facilitating easy on - site installation.
Pre - greased Bearings: Comes with pre - greased bearings and a sealed structure to prevent grease leakage, extending the maintenance interval to 6,000 working hours or 2 years.
Equipment Compatibility: Tailored to Kalmar's original equipment specifications, it is compatible with models such as container handlers (DRF series), reach stackers (RS series), and forklifts (DCG series), ensuring seamless replacement.
Keywords: bolt - on mounting, pre - greased bearings, Kalmar equipment compatibility
Application Scenarios of Kalmar A60683.0100 Wheel Hub
Port Container HandlingInstalled on Kalmar container handlers (e.g., DRF series). Bears heavy loads of containers (up to 40 tons) during loading/unloading. Resists saltwater, sand corrosion in port environments, ensuring stable rotation for continuous cargo transfer.Keywords: port operations, container handler, corrosion resistance
Industrial Material StackingUsed in Kalmar reach stackers (RS series) for warehouse logistics. Supports dynamic loads (9,500 kg+) when stacking pallets/heavy goods. Precision machining ensures smooth movement in tight storage spaces, boosting stacking efficiency.Keywords: warehouse logistics, reach stacker, precision movement
Heavy - Duty Forklift OperationsFits Kalmar forklifts (DCG series) in manufacturing plants. Withstands static loads (12,000 kg) of raw materials/semi - finished products. Easy - install design allows quick replacement, minimizing downtime in production line material transport.Keywords: manufacturing plant, forklift, quick replacement
Marine Deck MachineryApplied to Kalmar marine cranes on ships. The forged alloy steel and hard chrome plating resist harsh marine conditions (salt spray, humidity). Maintains load - bearing integrity for safe cargo lifting/transfer during voyages.Keywords: marine crane, harsh marine conditions, load - bearing integrity
Frequently Asked Questions & Answers
Q: What Kalmar equipment models is the A60683.0100 hub compatible with?
A: It fits Kalmar container handlers (DRF series), reach stackers (RS series), and forklifts (DCG series). Check the equipment manual or consult Kalmar support for exact model matches.
Q: How often should the wheel hub be replaced?
A: With normal use and maintenance (every 6,000 hours/2 years), it lasts 8–10 years. Harsh conditions (heavy corrosion/overload) may require earlier inspection/replacement.
Q: Can I install the hub without specialized tools?
A: Yes. It uses a bolt - on design with standard M24 bolts (torque 550 N·m). Follow Kalmar’s installation guide for proper fitting.
Q: Does the hub require regular maintenance?
A: Minimal. Pre - greased bearings and a sealed structure reduce needs. Inspect for wear/corrosion every 6 months and re - torque bolts annually for optimal performance.
