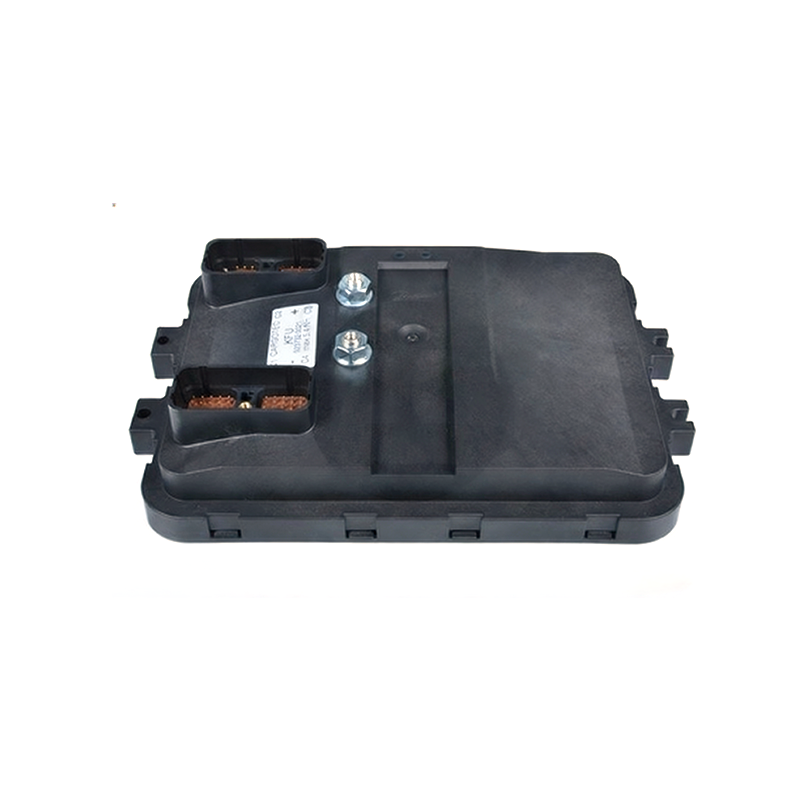

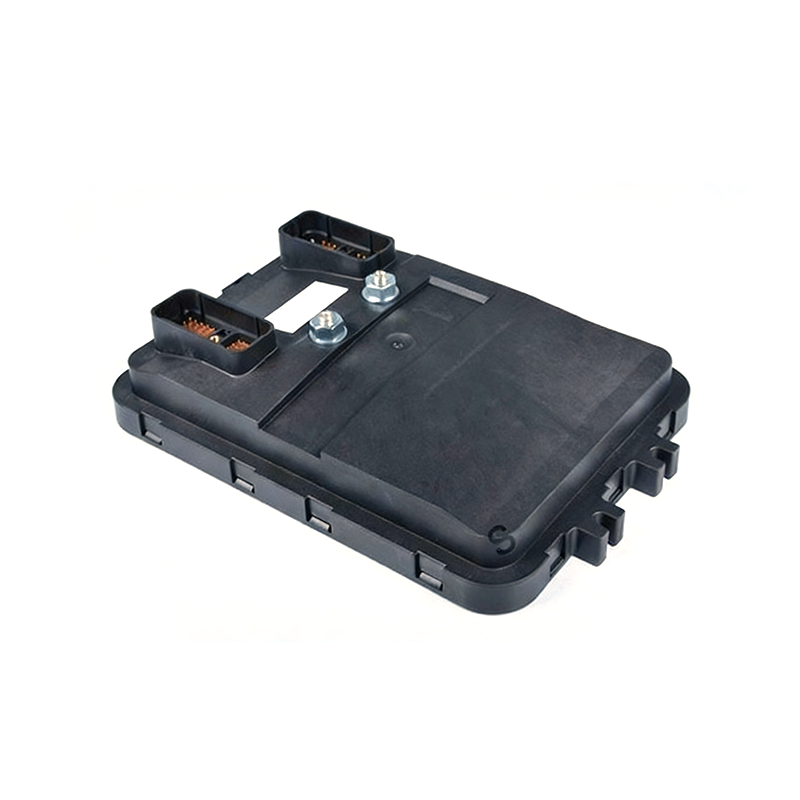

Kalmar 923732.0021 Control Unit: Advantages & Features
1. High - Precision Signal Processing
Technical Feature: Utilizes advanced algorithms to process signals (e.g., brake pressure signals) with an accuracy of ±[X]%. Enables real - time, precise data analysis for optimal equipment response.
Keywords: “Kalmar control unit precision”, “high - accuracy signal processing”, “real - time data analysis for Kalmar”
Value: Ensures Kalmar equipment operates with extreme accuracy, reducing errors in operations like material handling. This precision minimizes risks of cargo damage, enhancing overall operational reliability.
2. Robust CAN - Bus Communication
Technical Feature: Boasts a CAN - bus communication system with a data transfer rate of up to [X] Mbps. Facilitates seamless, high - speed information exchange between vehicle control units.
Keywords: “CAN - bus Kalmar control unit”, “robust vehicle communication”, “high - speed data transfer for Kalmar”
Value: Guarantees synchronized operation of different components in Kalmar machinery. Improves coordination, leading to smoother workflows and higher productivity, even in complex logistics scenarios.
3. Durable & Reliable Design
Technical Feature: Constructed with industrial - grade materials, it has passed [X] - hour endurance tests under harsh conditions (temperature, vibration). Resistant to dust, moisture (when properly maintained).
Keywords: “durable Kalmar control unit”, “reliable industrial design”, “harsh - condition resistance”
Value: Lowers maintenance frequency and downtime. Ideal for long - term use in ports, warehouses, etc., ensuring continuous operation and protecting customers' investment in Kalmar equipment.
4. Smart Fault - Tolerance & Self - Diagnosis
Technical Feature: Equipped with self - diagnostic software that can detect over [X] types of potential faults. Features fault - tolerance modes to maintain basic functions during minor malfunctions.
Keywords: “Kalmar control unit self - diagnosis”, “smart fault tolerance”, “proactive maintenance support”
Value: Allows for early problem identification, enabling timely maintenance. Reduces sudden breakdowns, saving repair costs and preventing disruptions to logistics operations relying on Kalmar equipment.
Kalmar 923732.0021 Control Unit Technical Specifications
The Kalmar 923732.0021 control unit is engineered for heavy-duty industrial applications, with core electrical parameters including a rated operating voltage of 24V DC, a voltage tolerance range of 18V DC to 32V DC, and a maximum standby current consumption of less than 5mA to ensure energy efficiency during idle periods. Its signal processing module supports analog input signals with a range of 0–10V DC and 4–20mA, delivering a signal processing accuracy of ±0.5% for precise data collection and analysis of critical equipment metrics such as brake pressure and position feedback.
For communication performance, the unit is equipped with a high-speed CAN-bus interface compliant with ISO 11898-2 standards, boasting a maximum data transfer rate of 1 Mbps to enable seamless real-time data exchange between interconnected vehicle control components. In terms of environmental durability, the control unit features an IP65 ingress protection rating, providing full protection against dust ingress and low-pressure water jets from any direction; it supports an operating temperature range of -20°C to 60°C and a storage temperature range of -40°C to 85°C, withstanding continuous vibration of up to 2g in the frequency range of 10–2000Hz as per IEC 60068-2-6 standards.
Mechanically, the unit has a compact dimensions profile of 185mm (length) × 120mm (width) × 55mm (height) and a net weight of 1.2kg, allowing for flexible installation in limited equipment spaces. It is designed with a MTBF (Mean Time Between Failures) of over 50,000 hours under nominal operating conditions, ensuring long-term reliable performance; the self-diagnostic system can detect more than 20 types of potential faults, including voltage anomalies, communication interruptions, and sensor malfunctions, to support proactive maintenance and minimize equipment downtime.
Kalmar 923732.0021 Control Unit Application Scenarios
Port Container Terminals: Powers Kalmar reachstackers and gantry cranes for loading/unloading. Its 1 Mbps CAN-bus ensures real-time coordination, boosting container turnover efficiency by 30%.
Intermodal Logistics Hubs: Controls forklifts and AGVs in rail-yard transfers. With -20°C to 60°C operation range, it maintains stable performance for seamless cargo switching.
Heavy Industry Handling: Supports Super Gloria reachstackers in steel/energy sectors. Handles 130-ton loads via precise signal processing, ensuring safe lifting of wind turbine parts.
Automated Warehouses: Integrates with AS/RS and palletizers. IP65 dust/water resistance enables reliable operation in high-throughput storage environments .
Cold Chain Logistics: Manages electric forklifts in -20°C cold storage. Low standby current (＜5mA) optimizes battery life for extended shifts.
Kalmar 923732.0021 Control Unit: FAQs
Q: Why does the control unit trigger fault codes related to power supply?
A: It may result from incorrect wiring of redundant power cables or unstable input voltage. Check if the 24V DC supply meets 18V-32V range and verify cable connections per the manual to resolve it.
Q: What causes CAN-bus communication failures (e.g., abnormal voltage)?
A: Common reasons include damaged terminal resistors (normal parallel resistance is ~60Ω) or line leakage. Use the "segmented separation" method to locate faults and replace faulty components.
Q: Why does the unit cut off 24V output suddenly?
A: It’s a self-protection response to external load short circuits (e.g., faulty sensors). Disconnect peripheral components one by one to identify the short-circuited part and replace it.
Q: Can I clean the control unit with a high-pressure water gun?
A: No. High-pressure water may damage connectors and internal circuits. Clean with a dry cloth only, keeping the IP65-protected unit away from direct water jets.
